Cast Iron Parallel Slide Valve

Product Description


Cast Iron Parallel Slide ValveCast Iron Parallel Slide ValveCast Iron Parallel Slide ValveCast Iron Parallel Slide ValveCast Iron Parallel Slide Valve
M
ain Technical Parameter

                    Part#PZ73W-6
Nomanal Pressure (MPa)0.6
Test Pressure0.9
Applicable Temperature<120ºC
Applicable MediaSlurry


Main  Part Material
Name                                 Part#
               Pz73W-6                   Pz73X-6/10/16
Body

Gray Cast IronGray  Cast Iron
Disc/Stem

SSSS
Stem Nut

Copper AlloyCopper Alloy
Handwheel

Cast IronCast Iron
Connecting Rod

Carbon SteelCarbon Steel

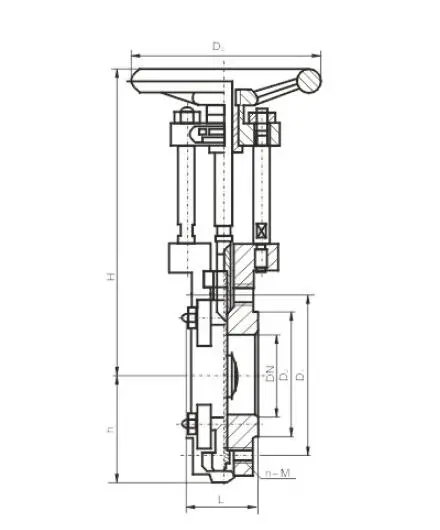

Valve shape and DimensionCast Iron Parallel Slide Valve
DNLD1D2D0Z-MHh
80681501151802-M16287107
100681701422002-M16319119
125802001632004-M16     364134
150802251902404-M16432150
200802802622404-M16499180
250903353102808-M16/4-18595210
300903853602808-M16/4-18670250
350904454253608-M20/4-23760270
400
450
500
600
