Home > Products > Gate Valve > Cast Steel Flange Gate Valve

Cast Steel Flange Gate Valve

Product Description

Cast Steel Flange Gate ValveCast Steel Flange Gate ValveCast Steel Flange Gate ValveCast Steel Flange Gate ValveCast Steel Flange Gate Valve
V
alve parts Material

 Part Name
                                                      Material
BodyWCBZGCr5MoCF8CF8M
ZG1Cr18Ni9Ti
CF3M
BonnetWCB12CrMoV
ZGCr5Mo
304CF8316CF8MCF3M,316L
BracketWCBWCBCF8CF8MCF3M
DiscWCBZGCr5MoCF8CF8MCF3M
Stem2Cr1325Cr2MoV1Cr18Ni9Ti
Seat25304304304304
Gasket/Seal ring304
Packing

Fexible graphite

Stem NutCopper Alloy



Technical specifications:

Nominal Pressure(MPa)
Test Pressure(MPa)Applicable Temperature(ºC)Applicable media
StrengthSeal WCBCr5Mo1Cr18Ni9Ti
1.62.41.76425540600water,oil,steam,acids
2.53.752.75

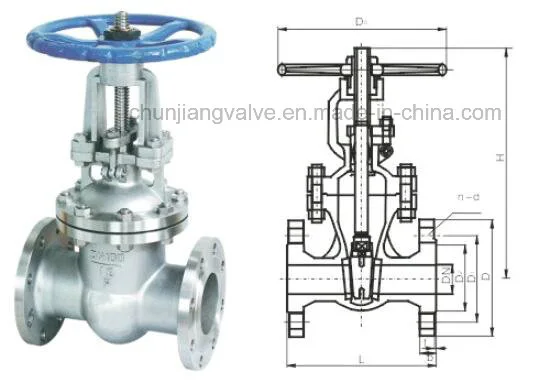

Valve shape and Dimensions
Cast Steel Flange Gate Valve

Cast Steel Flange Gate Valve
PN1.6
DNLDD1D2b-fn-dHD0
1513095654516-24-14170120
20150105755516-24-14190140
25160115856516-24-14205160
321801351007818-24-18270180
402001451108518-34-18310200
5025016012510018-34-18358240
6526518014512020-34-18373240
8028019516013520-38-18435280
10030021518015520-38-18500300
12532524521018522-38-18614320
15035028024021024-38-23674360
20040033529526526-312-23818400
25045040535532030-312-25969450
30050046041037530-712-251145560
35055052047043534-416-251280640
40060058052548536-416-301452640
45065064058554540-420-301541720
50070070565060844-420-341676720
60080084077071848-520-411874800

PN2.5
DNLDD1D2b-fn-dHD0
1513095654516-24-14170-
20150105755516-24-14190-
25160115856516-24-14205-
321801351007818-24-18270-
402001451108518-34-18310-
5025016012510020-34-18358-
6526518014512022-34-18373-
8028019516013522-38-18435-
10030021518015524-38-18500-
12532524521018528-38-18614-
15035028024021030-38-23674-
20040033529526534-312-23818-
25045040535532036-312-25969-
30050046041037540-412-251145-
35055052047043544-416-251280-
40060058052548548-416-301452-
45065064058554550-420-301541-
50070070565060852-420-341676-
60080084077071856-520-411874-



FAQ:

Q1. Are you trading company or manufacturer ?

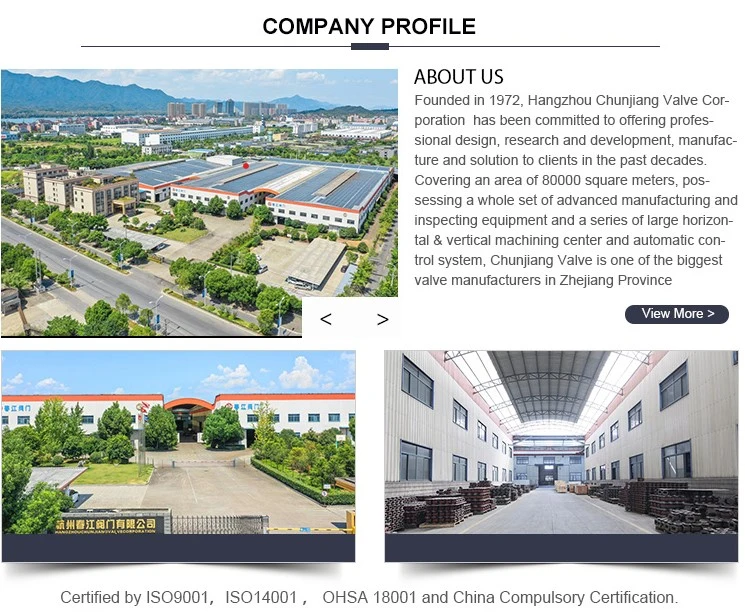

We are factory ,and we have specialized in manufacturing valves since 1972.

Q2.What is your payment terms?
Payment<=1000USD,100% in advance.
Payment>=1000USD,40% T/T in advance, balance before shipment.

Q3. Can you produce products with my own brand?
Yes, we can provide OEM services.

Q4:What is your lead time ?
 30 days after your payment. The accurate time depends on your product.

Q5.May I visit your factory?
Sure,welcome any time.

Q6.Why can we trust that you will deliver goods after remittance?
We are the honest merchant.and you will get the assurance from Made-in-china if you choose us,and  our factory has been inspected by BV .


Welcome to visit our company and do business with us.

Contact us if you need more details on Gate Valve. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Steel Valve、Flange Valve. If these products fail to match your need, please contact us and we would like to provide relevant information.
